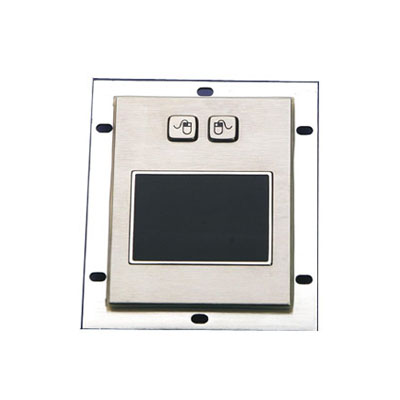

METAL KEYPAD / LIB-8206B

LIB-8206B


Product information





LIB touch features:

  • Mechanical front plate quality brushed stainless steel

  • Touch pad thickness: 1.3mm PCB thickness inclusive of layer

  • Validated touch width: 46.50mm (maximum)

  • Validated touch length: 62.50mm (maximum)

  • Mounting rack aluminum alloy

  • Back metal cover-rear side integrated electronics protected by a metal cover

  • Touch pad lifespan: more than 10 million times

  • Dimensions touch pad: 65.0 x 49.0mm and 107.0 x 120.0 x 20.0mm

  • Interface PS2 and USB both available

  • Electrical power supply: 5V DC +10%

  • Working current: 4.0mA (normal)

  • X/Y position sensing resolution: 1,000 points/inch (40 points/mm)

  • X/Y position reporting: relative

  • Tracking speed: 1,016m/second (maximum)

  • Protection level: IP65 (front panel)

  • Static release: 15kV (front panel)

  • EMC standard: EN55022 (B)

  • Environmental operating temperature: -20 to 60¡ãC

  • Storage temperature: - 40 to 70¡ãC

  • Humidity: 10 to 95% RH

  • Atmospheric pressure: 60 to 106kPa

  • MTBF: more than 20,000 hours

  • MTTR: less than 30 minutes

  • Touch pad lifespan: more than 10 million actuation

  • Operating systems: DOS, Microsoft Windows 95, 98, NT, Me, 2000, XP, 2003, Vista, Linux and Mac OS9
