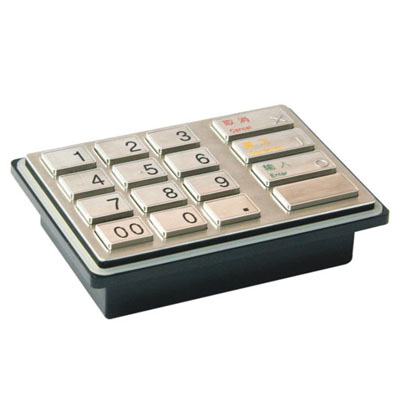

LIB Encryption Keypad Features





  Stainless Steel and polymer keyboard

  Different language layouts are acceptable to supply on request

  DES and Triple DES and RSA support

  Remote loading key with digital signature support

  Authorize for remove and installation support

  USB and RS232 interface

  128 KB data (keys) Storage

  Connectors for Function Keys and Beeper(second option)



Application Field

  OEM Encrypting PIN Pad for new automatic teller machines

  EPP Update for ATMs without Triple DES and PCI feature

  Unattended payment solutions

  Ticket Vending Machines

  Kiosk Solutions

  Gas Station

  Easy integration

  Highly competent software support



Electric Characteristics

  PIN input: 10 numerical keys and 6 function keys

  Security: encrypted key and self destruction function when tamper attack, water-proof, dust-free, vandalism-proof, prevent from tamper drilling, penetration, dismantling, audio monitoring, replacement

  Sensitive data will be kept for more than 5 years when power off.

  Standard£ºISO13491¡¢ISO9564¡¢IBM3624¡¢ANSI X9.8¡¢ANSI X9.9¡¢ANSI X9.19

  Encryption process: data encryption and data decryption, MAC and algorithm, PIN encryption

  Power supply: DC +5V +/- 10%, max 200mA

  RS232: DB9-M according to RS232-D up to 115200 baud.

  Communication interface: USB 2.0 connector, emulate RS-232 port or API driver.

  Internal beeper

  External keypad: with connector for 2 bars x 4 function keys



Mechanical characteristics

  Keys are made of stainless steel with etch engraving and colored graphics, front plate is polymer frame.

  All texts on the keypad is black, function keys with colored graphics

  Key lifespan: > 2,000,000 times

  Stainless steel plate, 12 keys 24 x 19mm with R2.5 corners and 4 keys 50 x 19mm   with R2.5 corners, with a raised dot on the "5" key, embossing X/0/I and raised braille on function keys for aiding visually handicapped users

  Key activation force: 2- 3N

  Key trip: >/=0.45mm

  Key and panel material: stainless steel

  Water-proof device: a watertight gasket



Environment Adaptability:

  EPP is watertight when mounted in the ATM correctly

  Protection level: IP65 static and IP 54 dynamic

  Operation temperature range: 0¡æ¡«+40¡æ

  Relative humidity range: 30%¡«90% RH(normal environment)

  Storage temperature range: -25¡æ¡«+55¡æ

  Relative storage humidity range: 20-95%(non-condensing)

  Air pressure: 60-106kPa



Software functions

  KVSIO offers driver program, DLL, API and other related professional software support.

  It is welcome for customer application software and firmware development and offered on request.



Dimensions

  Front plate W87.4 x D91.4(mm)

  Overall: W140 x D98 x H30(mm)



Net Weight

0.8KG
