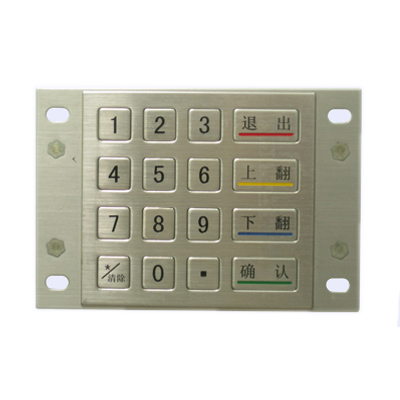

LIB Keypad features:

Main Applications:

Self service equipment and terminal

Info-kiosk

Medical equipment

Instrument

Key Specifications/Special Features:

Compatible with Standard: ISO13491,ISO/IEC 9995,GB/T 14081

Communication parameter:

Standard PC/AT keyboard interface, the second group command

16 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Exit, P-Up, P-Down, Enter,

4 x 4 scanning code

Interface: PS/2

Electrical data:

Contact material: Cu-Au

Basic material: epoxy

Power: DC +5V, keyboard interface supplies electricity directly

Power consuming:

Under 0.3W for operation

Under 0.2W for non-operation

Electrical lifetime: > 5 years

Mechanical data:

Mechanical lifetime: 2 Mio actuations

Operating temperature: 0 - + 40 deg. C

Operating relative humidity: 30 - 90% (normal condition)

Storage temperature: -25 - + 55 deg. C

Front panel/keys material: stainless steel

Lettering: laser engraving

Atmospheric pressure: 60 - 106kPa
