• Fixed-width bill validation (67mm or 71mm wide).

• Installs in an up or down stacking configuration.

• Advanced auto-calibrating optical, inductive and dielec-tric sensors optimize validation rates.

• Secure lockable-removable cassettes available in 400, 600 or 1000 bill capacity.

• Anti-stringing design.

• Dual entry sensors reduce jam rates.

• Tool-free, one-step, easy service access.

• Beltless transport system lowers maintenance costs.

• Switch selectable interfaces.

• Flash Memory.

• Built-in self-diagnostics.

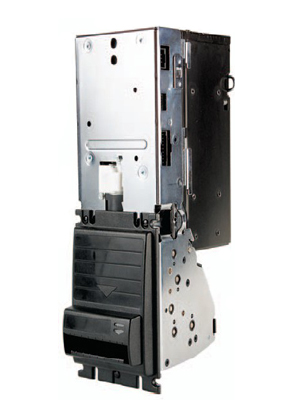

Advanced sensor technology. The BackLoad SM bill validator is designed to provide maximum authentic currency validation. Multi-color optic sensors simultaneously scan both sides of the bill for optimal pattern recognition. A patented, non-contact inductive sensor maximizes counterfeit detection; and a scientifically developed dielectric sensor detects paper density, security threads and watermarks. The result? A validation rate of 96% or greater on first bill insertion¡ªjust what you¡¯d expect from the industry leader in patented bill validation technology.

Stringing protection. The BackLoad SM offers real solutions to ¡°stringing¡± issues with anti-stringing cross-channel sensors¡ª engineered to prevent bill pull-back.

Versatility. Ideal for door-mounted applica-tions, the BackLoad SM bill validator installs in an up or down stacking configuration, and is available with coated circuit boards for ¡°salting¡± protection. Selecting the right interface for your 12V or 24V application is made easy with the flick of a switch. And you can choose a unique coin/vandal-resistant metal bezel or a standard bezel¡ªboth include built-in self-diagnostic flash code indicators.

Lockable-removable cassettes. Designed to protect your bottom-line, our high-security, lockable-removable metal cassettes are sold separately, and can be equipped with up to three custom locks.

Flash Memory. Software updates are quick with the use of CashCode¡¯s Smart Stick. Or download software remotely using CCNet. Two fast ways to stay current.

Auto-calibrating/auto-tuning. Every time a bill is inserted, the BackLoad SM self-calibrates and self-tunes, eliminating the need for optical adjustments and calibration papers.

Beltless design reduces maintenance. Our patented and innovative currency transport design improves performance and greatly reduces long-term maintenance costs.
