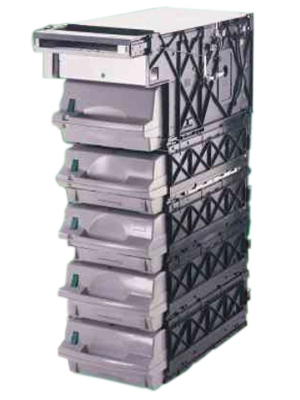

NMD 100


Product information

The NMD 100 is fully modular to allow for flexible configuration from one to eight denominations. The NMD 100 contains three advanced features, unique technology: IDD? HPF?and SCL.



IDD Intelligent Double Detection delivers superb accuracy and consistent detection of doubles even when notes are severely degraded. With IDD, no mechanical adjustments or intervention are required which means that it is ready to use as soon as it is out of the box. IDD enables the single note reject function which powers fast transactions and enables easy reconciliation with few notes to handle from the reject vault.



HPF High Performance Feed provides consistent and durable feeding, reliable handling of notes of all conditions and the ability to process notes without causing damage.



SCL Smart Cassette Logic offers a fully flexible solution with tamperproof cassettes which can be uniquely identified and individually replenished. Short, long, lockable and non-lockable cassette options are available.

Bundle dispensing

The NMD 100 provides bundle dispensing as standard. The bundle presenter brings enhanced security as the mechanism remains in full control of the notes until they are taken by the customer. A separate bundle retract function ensures maximum visibility of uncollected notes or fraudulent transactions.

The NMD 100 is designed in accordance with the recommendations of leading International Standards Organisations such as RoHS, UL and CE to allow for final approval when installed in complete systems.

Technical specification

  • Media capability

The NMD 100 will handle the following size and thickness ranges:

Width: 58 to 92mm Length: 100 to 181mm Thickness: 0.06 to 0.32mm

  • Maximum note bundle/transaction size

100 ATM fit banknotes

  • Maximum cassette capacity

(dependent on thickness and quality)

Short cassette: 240mm or up to 2000 banknotes

Long cassette: 340mm or up to 3000 banknotes

  • Weight (without notes)

Standard 2-denomination NMD 100 (with cassettes):

22.2kg (48.9lbs) Additional denomination (without cassette): 3.0kg (6.6lbs)

Short cassette:

2.2kg (4.9lbs)

Long cassette:

2.9kg (6.4lbs)

Reject vault:

2.0kg (4.4lbs)

  • Throat extensions

Throat extensions are available in different lengths:

85mm, 130mm, 180mm and 320mm

  • Shutter interface

The NMD 100 is fitted with an integrated shutter interface. This can be used to control your own shutter or De La Rue can supply a plug-and-play shutter as an option

  • Communication interface

RS232C connection provided as standard

  • Power supply requirements

The NMD 100 is fitted with an integrated power supply

The input rating is 120-240V AC 50/60Hz 3A

  • Operating environment

Temperature:

5 to 50¡ãC, 41 to 122¡ãC

Relative humidity:

10 to 90% non-condensing
