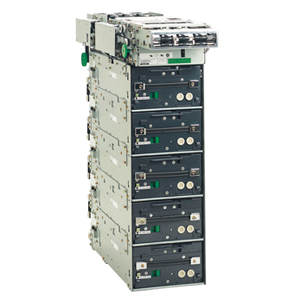

F510


Product information





Best-in-Class Multi Cassette Media/Currency Dispenser

  • Front, Rear, or Dual Service

  • Pool / Bulk Presenter

  • Configurable 1-6 cassettes (can be configured as a 6 high UL291, 24 hour safe and still fit under a 38.5" standard bacnk counter!)

  • High Capacity (up to 18,000 new quality notes)

  • On board and remote diagnostic tools for quickly diagnosing and resolving issues

  • Reduce Total Cost of Ownership

  • Global Applications

  • Target applications include high end ATMs, bill breakers, bill payments kiosk, teller assist units, gaming / casino, media dispenser, etc.

F510 is one of the fastest cash dispensers in the industry. The unit is expandable up to six cassettes that can hold up to 3,000 notes each. With a total capacity of 18,000 notes, it is perfect for high-activity installations. The multimedia-capable F510 can dispense postage stamps, coupons, pre-paid phone cards or other specialized media, making it one of the most flexible dispensers in the industry.



F510 has been designed to drive down your total cost of ownership. The unit features advanced onboard and remote diagnostics to help detect problems before they occur. And its integrated reject bin reduces maintenance needs. The F510 can be installed in both front and rear service configurations, enabling you to purchase the same model dispenser for multiple applications, which reduces support costs, lowers spare inventory, and minimizes maintenance logistics.




Specifications

Dimensions (W x D x H)
2-denominations

280mm x 752mm x 810mm (Front access)
280mm x 757mm x 810mm (Rear access)



Capacities /
denominations

Accommodation 370mm
New notes 3000 each cass (approx.)

Weight (w/o media)

72kg



Reject Bin

In 1st cash cartridge

Service Access

Front or Rear access



Reject Bill Capacity

Approx. 150 Bills

Number of cassettes

Up to 6 Cassettes



Bill low sensor

Adj. sensor 50 ~ 300 notes
Default: 100 notes

Bill count speed

7 notes / second



Interface

RS232c

Acceptable
media range

Max. 82mm x 172mm
Min. 60mm x 120mm
Thickness 0.07 ~ 0.18mm
Up to 0.3mm other media
*Certification of other media is required



Electrical Power Requirements

DC +24V (+10%, -10%)
Max 10A
Ave. 4A

Bill transaction

60 bills / transaction



Temperature

Operation 0 ~ 40 ¡ã C
Stop State -5 ~ 50 ¡ã C

Bill retrieval

Yes / Bunch presenter



Relative Humidity

Operation 10 ~ 95%
Stop state 8 ~ 95%

Shutter

Optional
