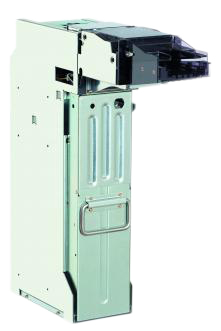

BNF - 20

Bulk Note Feeder

Insertion of up to 20 banknotes in a bundle

Insertion

Length: 120 -165mm, width: 65 - 82mm

Acceptance rate

90% or higher

Processing speed

Normal operation: approx. 2,8 sec/bill

(collective insertion of 20 banknotes)

Escrow

1 Banknote

Interface

TTL, RS232 (option)

Protocol

JCM ID-003 (standard)

Stacker box

Front access, intelligent cash box capability

Stacker capacity

2000 Notes

Validation method

Optical and magnetic

Barcode reading

Yes

Dimension

117,4mm (w) x 429,7mm (d) x 475,8mm (h)

Weight

Approx. 10 kg

Installation

Indoor

Environment

Operating temperature: 10¡ã - 40¡ãC

Storage temperature: ¨C20¡ã - 60¡ãC

Power requirements

DC 12V (¡À 5%), Standby: 0,25A, Operation: 2,6A

Maintenance

Easy access for maintenance through modular design

Approvals

, UL, CSA

The BNF-20 is able to accept up to 20 ban

knotes in a bundle.
