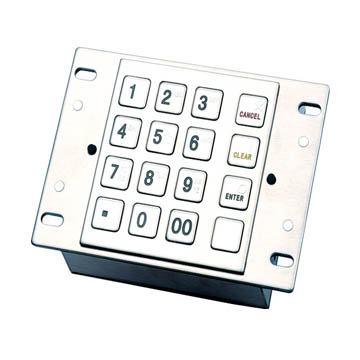

LIG-8204E encryption keypad Features

  KVSIO series encrypting PIN Pad   Stainless Steel and polymer keyboard   Different language layouts are acceptable to supply on request   DES and Triple DES and RSA support   Remote loading key with digital signature support   Authorize for remove and installation support   USB and RS232 interface   128 KB data (keys) Storage   Connectors for Function Keys and Beeper(second option)

Application Field

  OEM Encrypting PIN Pad for new automatic teller machines   EPP Update for ATMs without Triple DES and PCI feature   Unattended payment solutions   Ticket Vending Machines   Kiosk Solutions   Gas Station   Easy integration   Highly competent software support

Electric Characteristics

  PIN input: 10 numerical keys and 6 function keys   Security: encrypted key and self destruction function when tamper attack, water-proof, dust-free, vandalism-proof, prevent from tamper drilling, penetration, dismantling, audio monitoring, replacement   Sensitive data will be kept for more than 5 years when power off.   Standard£ºISO13491¡¢ISO9564¡¢IBM3624¡¢ANSI X9.8¡¢ANSI X9.9¡¢ANSI X9.19   Encryption process: data encryption and data decryption, MAC and algorithm, PIN encryption   Power supply: DC +5V +/- 10%, max 200mA   RS232: DB9-M according to RS232-D up to 115200 baud.   Communication interface: USB 2.0 connector, emulate RS-232 port or API driver.   Internal beeper   External keypad: with connector for 2 bars x 4 function keys

Mechanical characteristics

  Keys are made of stainless steel with etch engraving and colored graphics, front plate is polymer frame.   All texts on the keypad is black, function keys with colored graphics   Key lifespan: > 2,000,000 times   Stainless steel plate, 12 keys 24 x 19mm with R2.5 corners and 4 keys 50 x 19mm   with R2.5 corners, with a raised dot on the "5" key, embossing X/0/I and raised braille on function keys for aiding visually handicapped users   Key activation force: 2- 3N   Key trip: >/=0.45mm   Key and panel material: stainless steel   Water-proof device: a watertight gasket

Environment Adaptability:

  EPP is watertight when mounted in the ATM correctly   Protection level: IP65 static and IP 54 dynamic   Operation temperature range: 0¡æ¡«+40¡æ   Relative humidity range: 30%¡«90% RH(normal environment)   Storage temperature range: -25¡æ¡«+55¡æ   Relative storage humidity range: 20-95%(non-condensing)   Air pressure: 60-106kPa

Software functions

  KVSIO offers driver program, DLL, API and other related professional software support.    It is welcome for customer application software and firmware development and offered on request.

Dimensions

  KVSIO-8204E  M5X front plate W87.4 x D91.4(mm)   Overall: W140 x D98 x H30(mm)

Net Weight

0.8KG

Order Information

Model number: KVS-8204E
Name: Stainless Steel Encrypting PIN Pad
Product code number:
M5x¡ªH1x¡ªXXX M5x¡ª¡ªHardware code H1x¡ª¡ªFirmware code XXX¡ª¡ªApplication code(customer)
